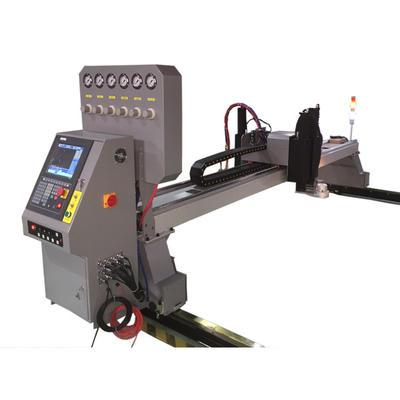

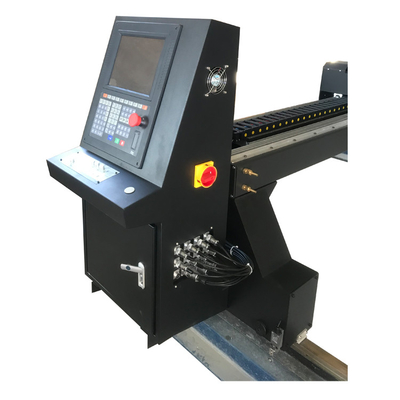

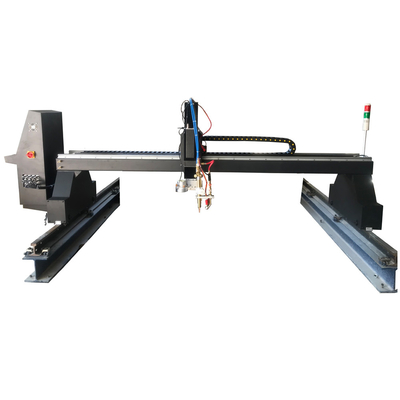

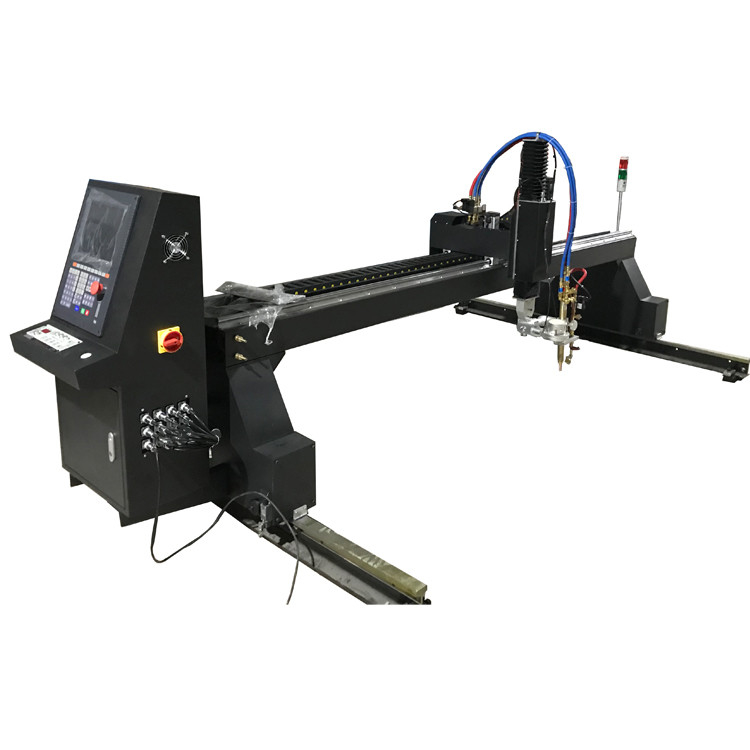

60A Precision Plasma Gantry Cnc Profile Gas Cutting Machine 1kW
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SNR |
| Certification: | CE |
| Model Number: | SNR-QL4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 20 Set/Sets per Month |
|
Detail Information |
|||
| Name: | CNC Plasma Flame Cutting Machine | Voltage: | AC220V/50HZ |
|---|---|---|---|
| Rated Power: | 1000W | Cutting Mode: | Plasma Cutting+ Flame Cutting |
| Control System: | Starfire Control System SF-2300S | Height Control: | HYD XPTHC-400-PT Automatic For Plasma |
| Working Size: | 1500*3000mm/2000*3000mm/2000*6000mm | Drive Motor: | Servo Motor |
| Cutting Thickness: | 2-30mm (plasma) 6-120mm(flame) | Cutting Speed: | 0-6000mm/min(plasma),0-700mm/min(flame) |
| Software: | Fastcam Software/StarCAM/HiNest | Guide Rail: | 24KG Steel Rail |
| High Light: | 60A Precision Plasma Gantry Cnc,Gantry Cnc Profile Gas Cutting Machine,Cnc Profile Gas Cutting Machine 1kW |
||
Product Description
CNC Plasma Portable Cutting Machine Small Gantry Flame Cutting Machine 60A
4. This CNC plasma machine can make high quality cutting for stainless steel, mild steel, and non-ferrous metal sheet with 2-30 in thickness.
5. It can compatible with both China brand and imported American brand of plasma source: 100A, 120A,200A,300A,400A
|
Product Name
|
gantry plasma cutting machine
|
|
Cutting size
|
2000*6000mm,can be customized
|
|
Cutting mode
|
plasma+flame
|
|
CNC control system
|
Starfire SF-2300S or Fangling F2300B
|
|
THC
|
XPTHC-400-PT auto torch height control for plasma
|
|
Motor
|
Servo motor & driver
|
|
Voltage
|
AC220±10v 50Hz
|
|
Rated Power
|
1000W
|
|
Drive mode
|
dual drive
|
|
cutting thickness (plasma)
|
2-30mm, depends on plasma source
|
|
Cutting thickness(flame)
|
6-120mm
|
|
Guide rail
|
24KG steel rail
|
|
Software
|
FastCAM STD version
|
|
Package
|
Wooden case
|
Beijing Seigniory NC Equipment Co.,Ltd is a professional manuafacturer and exporter of CNC cutting machine. we have been in this CNC filed for more than 14 years. Our main products includes portable CNC,gantry CNC, CNC plasma table for metal sheet and steel pipes.
Since the estabilsh of our company, we have been sticking to the path of specialization and had many engineering technology staff members.
Our machines are widely used in automotive manufacturing, shipbuilding, fan manufacturing,mining equipment, steel processing, advertising cutting, enginerring machiney, agricultural machinery and other machinery manufacturing industry.
So far we have exported to many countries like Russia, France, UK, Peru,, Mexico, USA, South Africa, Australia, Thailand, Malaysia, India and so on.
