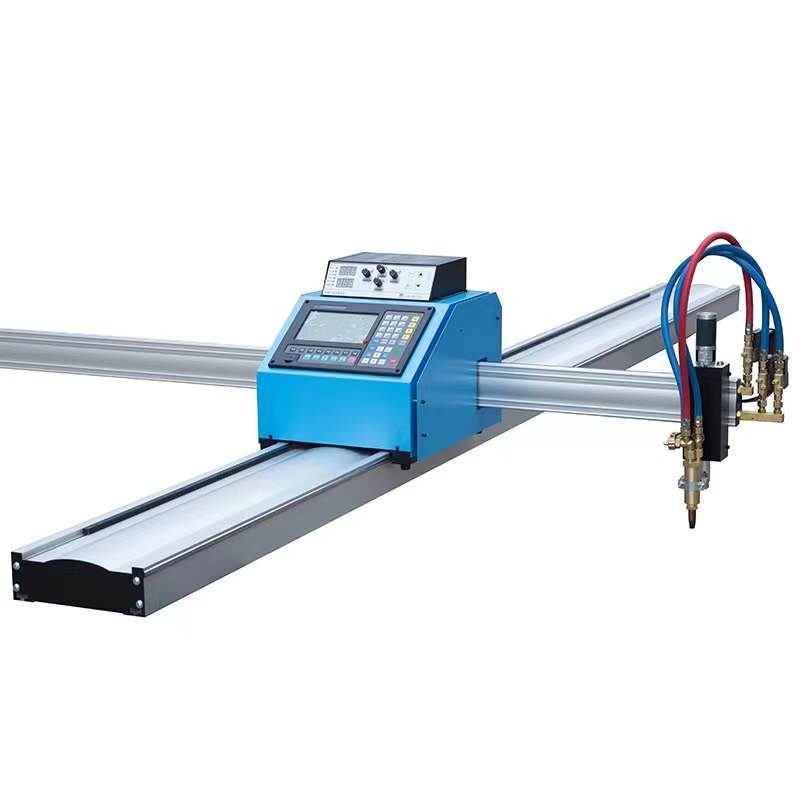

SNR 1530 100a Portable Plasma Cutter Cnc Mini Stepper Motor
Product Details:
| Place of Origin: | Beijing, China |
| Brand Name: | SNR |
| Certification: | CE |
| Model Number: | SNR-QB-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 5-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100 sets per Month |
|
Detail Information |
|||
| Product Name: | Portable Cnc Plasma Cutting Machine | Voltage: | Single Phase 220V，50/60Hz |
|---|---|---|---|
| Cutting Mode: | Plasma/Flame | CUtting Speed: | 0-4000mm/min |
| Control System: | Fangling F2100B 7.0 Inch | Height Control: | Fangling F1621 Automatic |
| Cutting Size: | 1500x3000mm | Motor: | Stepper Motor |
| High Light: | 1530 portable plasma cutter cnc,100a portable plasma cutter cnc,mini portable cnc cutter |
||
Product Description
1530 Portable Cnc Plasma Cutting Machine 100A Mini CNC Plasma Cutter
Product features
(1) Tailored track acquires high-intensity, high-speed and high-precision features.
(2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.
(3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
(4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
(5) This portable CNC plasma cutting machine is with two cutting modes: Flame Cutting & Plasma Cutting.
(6) Chinese, English, French, and Portuguese are ready to use.
(7) Can automatically memorize and restore when power is off.
(8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,protect the torch form damage and prolong life span of the nozzles.
(9) With status indication device.
(10) With positioning functions of protection cover, proximity switch and dual-speed.
(11) The portable CNC plasma cutting machine is compatible with both the domestic plasma and foreign-brand plasma.
Application
Portable CNC plasma cutting machine can cut mild steel, high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal, etc.
It is widely applied in industries such as automobile, shipbuilding, machine tools, pressure vessels, engineering machinery, mining machinery,electric power, building bridges, steel Industries.
Product Parameters
| Machine Name | Portable CNC plasma cutting machine |
| Keywords | CNC plasma cutter |
| Machine input Voltage | Single phase 220V, 50/60Hz |
| Plasma source input voltage | 3 phase 380V,50/60Hz |
| Effective Cutting size | 1500x3000mm, can be customized |
| Cutting type | Plasma+flame |
| Cutting speed | 0-4000mm/min(plasma),0-700mm/min(flame) |
| Cutting thickness(plasma) | 2-25mm, depends on plasma source |
| Cutting thickness(flame) | 6-120mm |
| CNC control system | Fangling F2100B CNC 7.0 inch |
| THC | Fangling F1621 auto torch height control for plasma |
| Nest software | FastCAM / HiNest/ StarCAM |
| Plasma source(optional) | HUYUAN OR MISNCO or America brand |
Machine detail shows
Package
FAQ
Q1: Are you a trading company or manufacturer?
A: we are a professional manufacturer of CNC cutting machine for 14 years.
Q2: Do you accept OEM for customer’s brand?
A: yes, we can do OEM. But we need MOQ for mass production.
Q3: What’s the delivery time?
A: The delivery time depends on machine model and quantity, you can directly contact us for more information.
Q4: What’s the payment terms for a new customer?
A: Under USD5000, 100% in advance by T/T. Above USD5000, 50% in advance by T/T, the rest be paid before delivery.
Q5: What kind of package do you use?
A: Plywood case, fumigation-free.
Q6: I know nothing about this machine, what kind of machine i should choose?
A: Very easy to choose. Just tell us what you want to do by using CNC cutting machine, the cutting size and thickness, and then let us give you perfect solutions and suggestions. Feel free to contact us!
